Gentle material handling across the entire production line.
Our Rope Conveyor System: CONVO
Sensitive products require the utmost care during transport. Our CONVO rope conveyor systems move your bulk materials from A to B with exceptional product protection, in a dust-tight and energy-efficient manner. Minimize product degradation and material segregation with a technology that perfectly combines gentle handling and outstanding reliability.
Why our rope conveyor systems are the ideal choice for your production:
- Maximum product protection
Extremely low conveying speeds within a closed tube system prevent abrasion, breakage, and material segregation
- Dust- and gas-tight system
Provides reliable protection for personnel and the environment – ideal for hygienic applications and sensitive processing areas.
- Flexible three-dimensional routing
Curves, inclines, and directional changes can be realized in confined spaces without the need for additional transfer points.
- Low energy consumption
A highly efficient mechanical drive system ensures minimal operating costs compared to pneumatic conveying systems.
- Easy cleaning
Optional wet or dry cleaning systems integrated directly into the conveying tube enable rapid product changeovers without the risk of cross-contamination.
| Leistungstabelle abhängig von der Applikation und Produkt | ||
| Type | Durchmesser mm | Leistung m³/h |
| CONVO 60 | 60 | -5 |
| CONVO 100 | 100 | -15 |
| CONVO 150 | 150 | -33 |
| CONVO Duo | 300 | -70 |
__________________________________________________________________________________________________________________________________________________________________________________
Seilförderer CONVO
CONVO Standard
- Gentle Conveying for Demanding Bulk Materials
- Food & Beverage Industry: Coffee (beans & ground coffee), breakfast cereals, nuts, spices, and dried fruits.
- Chemical & Pharmaceutical Industry: Sensitive granulates, tablet ingredients, powders, and toxic materials.
- Agriculture & Animal Feed: Seeds, grains, pellets, and delicate feed blends.
__________________________________________________________________________________________________________________________________________________________________________________
Pressure-Resistant Rope Conveyor
CONVO Pressure-Tight Conveyor
For highly sensitive bulk materials, we offer our rope conveyor systems in a completely gas-tight and pressure-resistant design. This enclosed system fully isolates the conveyed material from the surrounding environment. It reliably prevents the escape of dust, gases, and odors while simultaneously protecting the product from external influences such as oxygen and moisture.
Key Benefits
- Complete product containment for maximum process safety
- Gas-tight and pressure-resistant construction for demanding applications
- Protection against contamination from the surrounding environment
- Prevention of dust, gas, and odor emissions
- Ideal for inerted, hygienic, and safety-critical processes
- Gentle conveying without compromising product quality
This specialized design is particularly suited for applications involving sensitive, hazardous, oxidation-prone, or high-value materials.
__________________________________________________________________________________________________________________________________________________________________________________
Seilförderer CIP
CONVO CIP

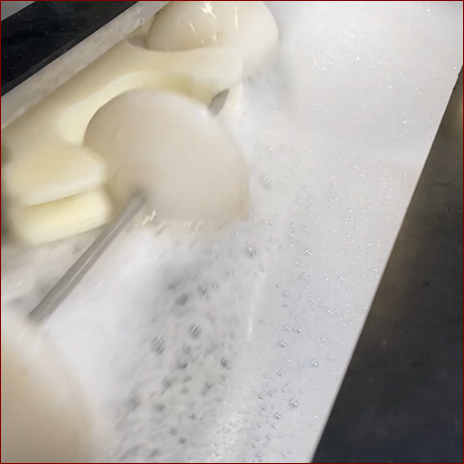

Maximum cleanliness with minimal downtime: Our CIP-capable rope conveyor systems have been specifically developed for industries with the most stringent hygiene requirements. The system cleans and sanitizes itself fully automatically while remaining completely closed – with no need to dismantle conveying tubes or divert stations. This saves valuable labor time, eliminates the risk of human cleaning errors, and ensures fully reproducible hygiene processes.
Key Benefits
- Fully automated Cleaning-in-Place (CIP)
- No dismantling required
- Reduced downtime and maintenance effort
- Reliable and reproducible cleaning results
- Minimized risk of cross-contamination
- Ideal for food, dairy, pharmaceutical, and other hygienic applications
The closed-system design guarantees efficient cleaning and sanitization of all product-contact surfaces, ensuring maximum product safety and consistent process quality.
